SAE COMPLIANT FOG LIGHTS: The Morimoto 4Banger NCS SAE Wide Beam out-performs the competition while complying with the latest SAE F regulations for a street legal fog light. The 4Banger HXB Wide Beam sets a new industry benchmark for intensity. But what's better than producing the best and brightest beam patterns that are safe for use on public roads as a fog light? The best fog-light specific mounting brackets for your Toyota, of course.

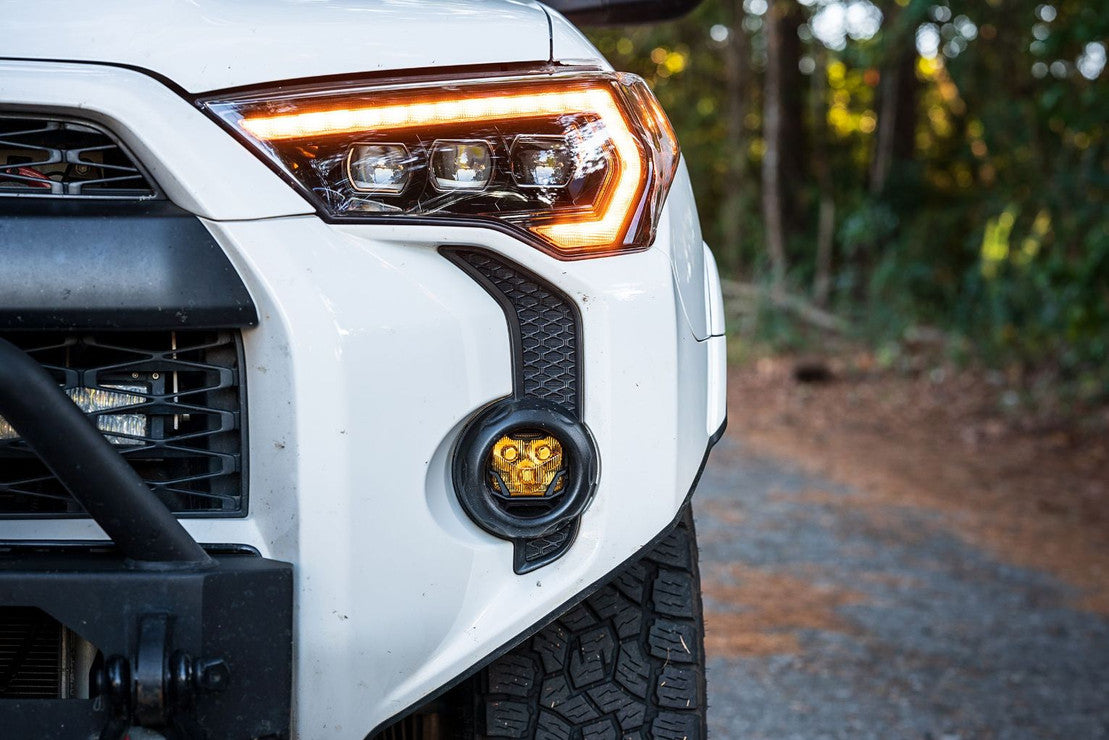

ENGINEERED SOLUTION: Thanks to the smaller than usual footprint of the 4Banger, we now have a powerful fog light upgrade that fits properly and looks right. Other adapter kits for more traditionally-sized LED pods stick out like a sore thumb. Not here. Morimoto engineers spent hundreds of hours hands-on in the garage during development of the 4Banger brackets alone. Repeated rounds of design, prototyping, and test fitting have spawned the most refined set of fog light brackets that a 4Runner owner could ask for.
EASY SETUP: Everything is designed to bolt-on and plug-n-play. No modifications are required to your vehicle or its wiring to install the 4Banger off-road lights in your fogs. Each kit includes all of the necessary hardware and high-quality wiring adapters to connect with your factory fog light harness. Note, your vehicle must have stock fog lights.
HXB WIDE BEAM: Offers an extremely wide beam pattern backed with powerful Osram HX Boost LEDs, making these the brightest SAE-Compliant fog light pod on the market today (80% brighter than Rigid D-Series SAE Fog and photometrics verified SAE Compliant by Calcoast ITL). The 4Banger HXB Wide beam delivers the best combination of width, intensity, and control - making it the most effective on and off-road LED fog light in the world.
NCS WIDE BEAM: Offers the same super wide beam pattern backed with LEDs from Nichia. Their superior vertical gradient control also been verified by Calcoast ITL to meet SAE F photometric standards for on-road use as a fog light, making them highly effective on the ground and glare-free for oncoming traffic. The NCS Wide beam is 14% brighter than its next closest competitor (Rigid D-Series SAE), while consuming 28% less power (15.6W vs 21.5W).

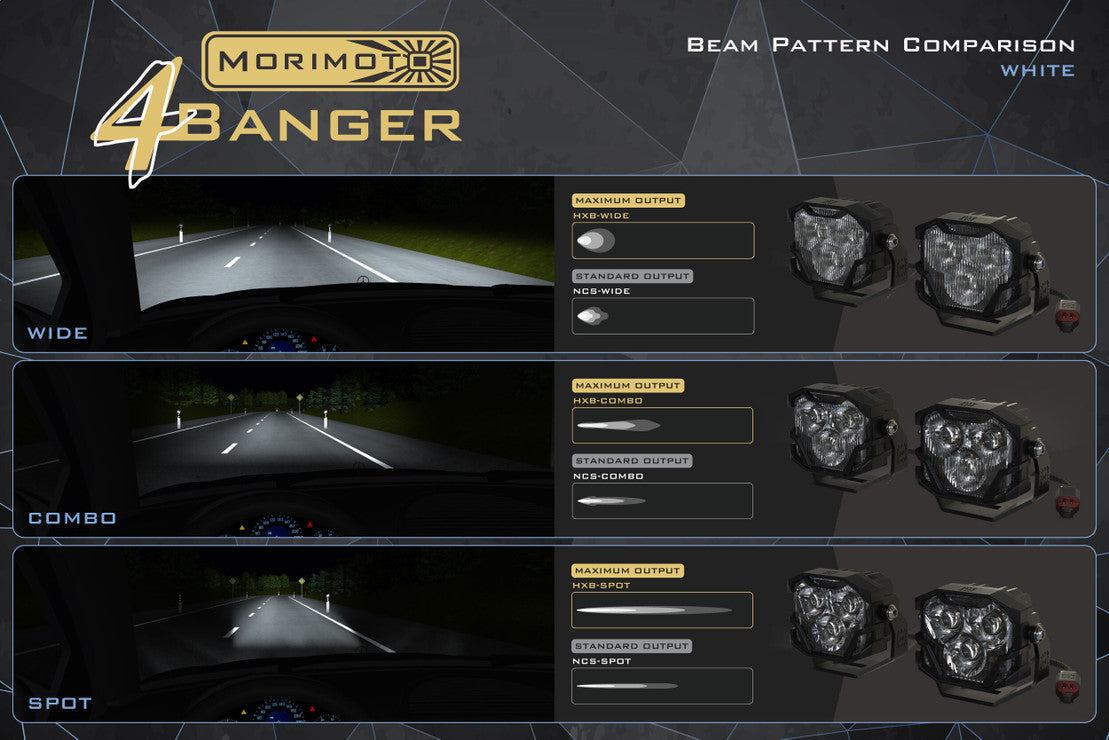

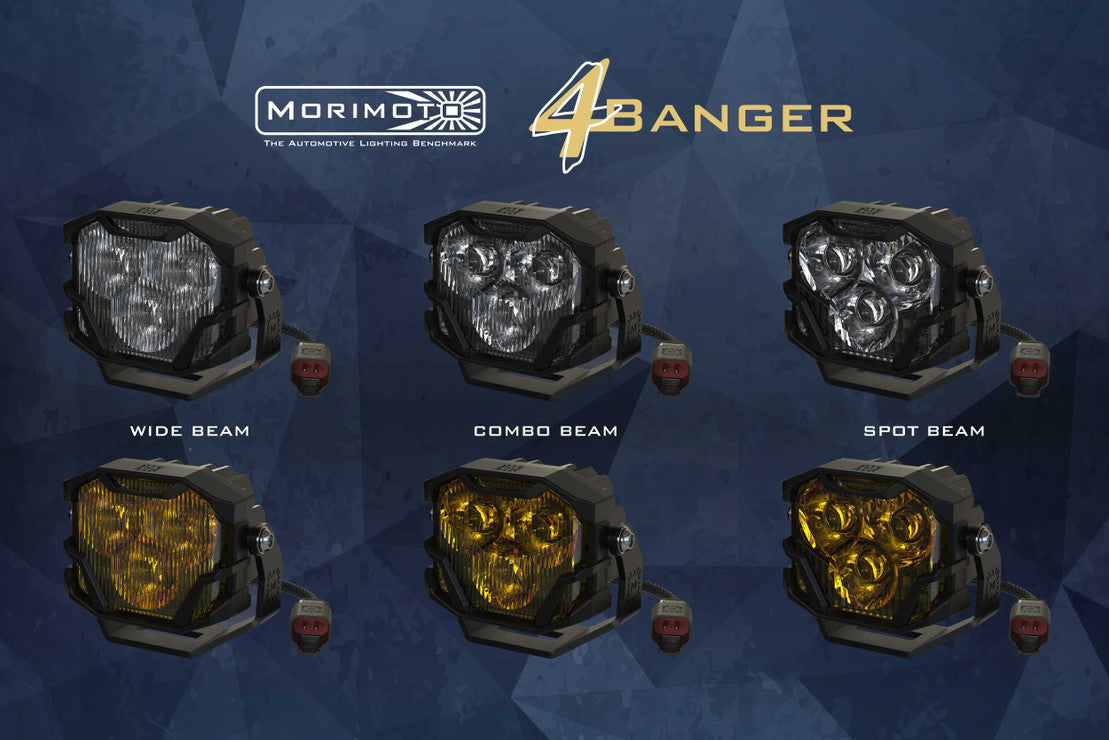

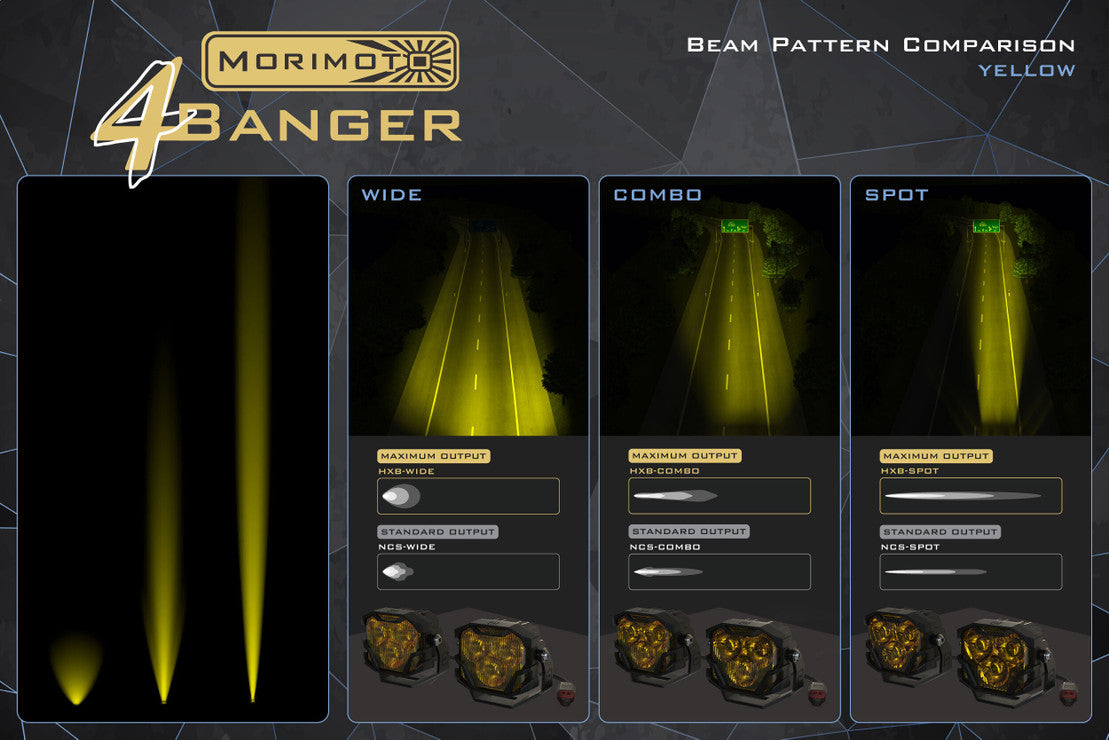

NCS WIDE YELLOW: 8,680 Cd (Post Warm-Up) (86.8lux @ 10m)
NCS WIDE WHITE: 14,400 Cd (Post Warm-Up) (144lux @ 10m)
NCS COMBO YELLOW: 38,850 Cd (Post Warm-Up) (384lux @ 10m)
NCS COMBO WHITE: 55,500 Cd (Post Warm-Up) (555lux @ 10m)
NCS SPOT YELLOW: 73,500 Cd (Post Warm-Up) (735lux @ 10m)
NCS SPOT WHITE: 105,000 Cd (Post Warm-Up) (1,005lux @ 10m)
HXB WIDE YELLOW: 14,700 Cd (@20 Min / 21C Ambient) (147lux @ 10m)
HXB WIDE WHITE: 22,400 Cd (@20 Min / 21C Ambient) (224lux @ 10m)
HXB COMBO YELLOW: 54,600 Cd (@20 Min / 21C Ambient) (546lux @ 10m)
HXB COMBO WHITE: 78,000 Cd (@20 Min / 21C Ambient) (780lux @ 10m)
HXB SPOT YELLOW: 119,000 Cd (@20 Min / 21C Ambient) (1190lux @ 10m)
HXB SPOT WHITE: 170,000 Cd (@20 Min / 21C Ambient) (1,700lux @ 10m)
INPUT VOLTAGE: 9-18V DC
POWER: 20w (NCS) 42w (HXB)
CURRENT: 1.5A (NCS) or 3.2A (HXB)

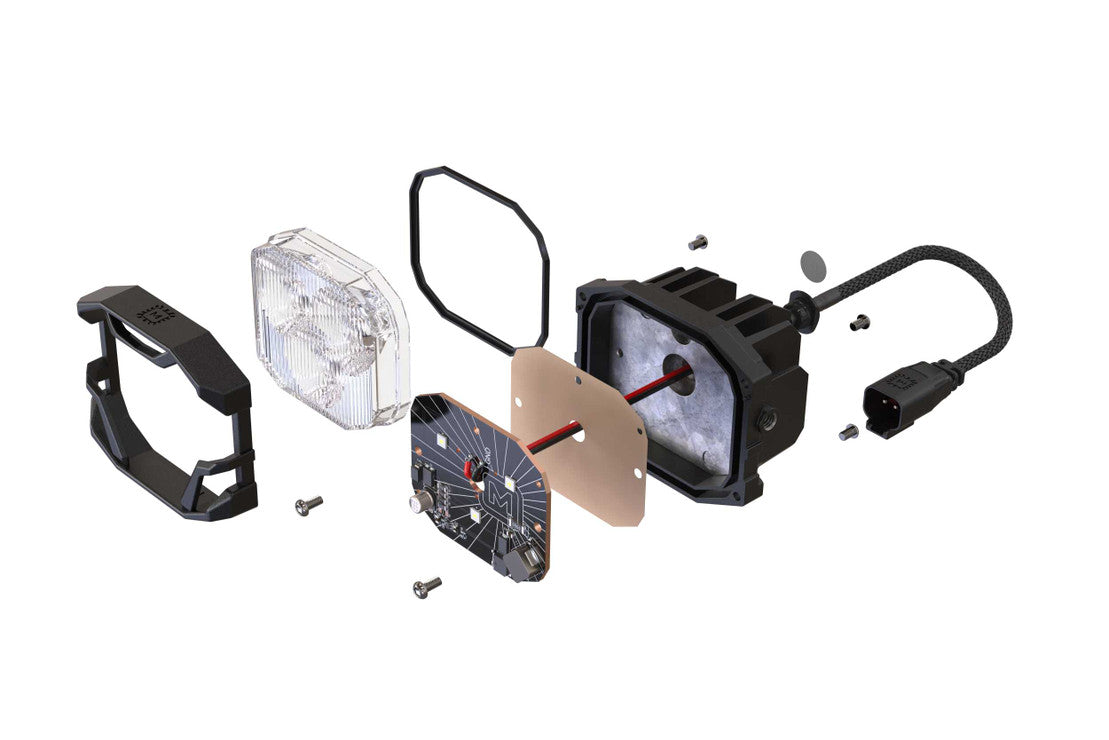

DIMENSIONS: 82mm W, 67mm H, 60mm D

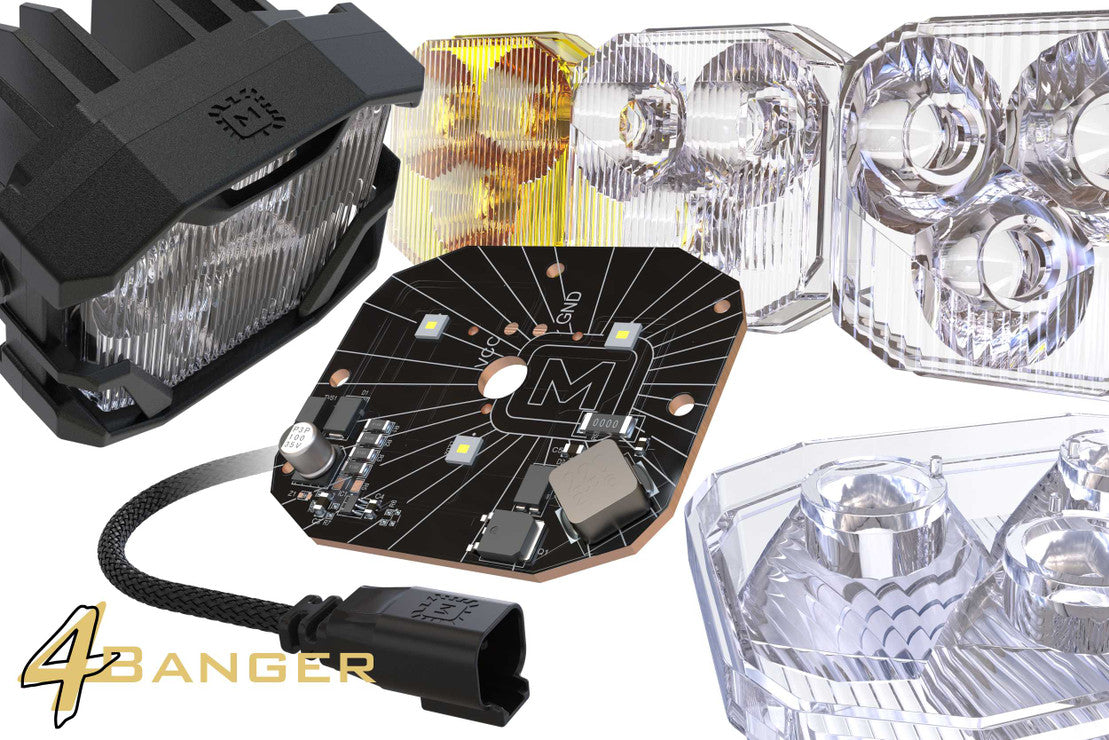

LIGHT SOURCE: 3x Nichia NCSY131F, Nichia NCSW131F, or Osram HX Boost
INPUT: Proprietary Overmolded Deutsch DT 2-Pin w/ Pigtail
MATERIAL: Makrolon LED PC (Lens), Powdercoated Die Cast Aluminum (Housing)
IP RATING: IP68K (Dust / High Pressure Water Resistant)

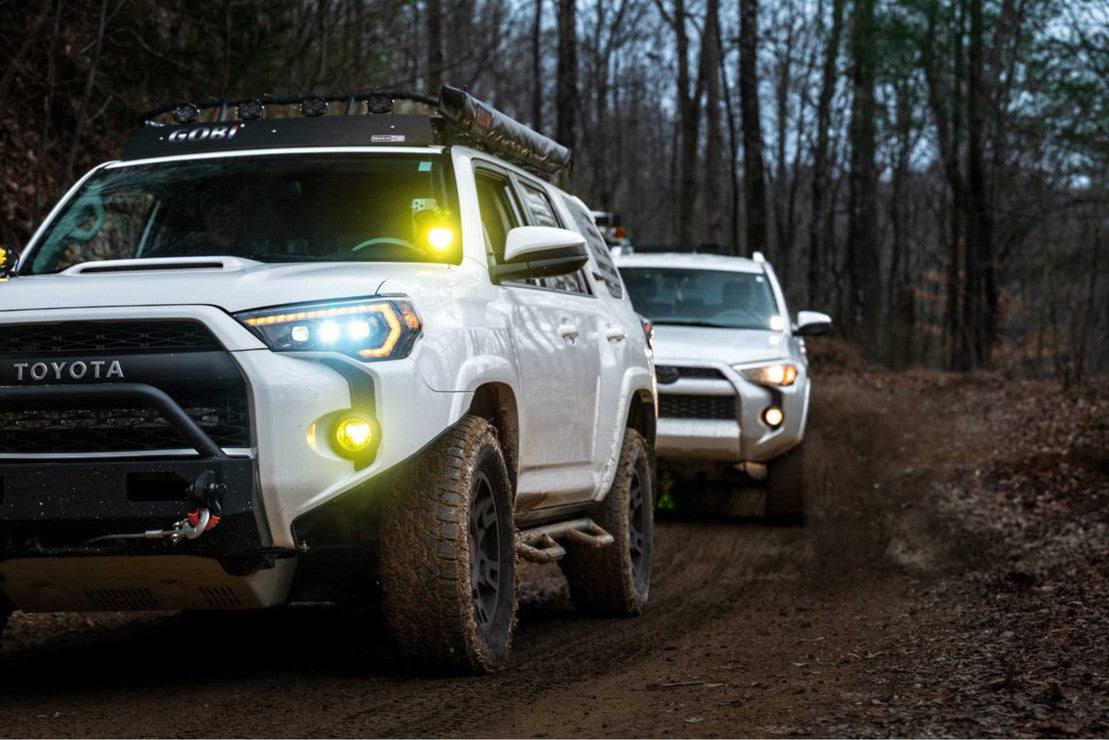

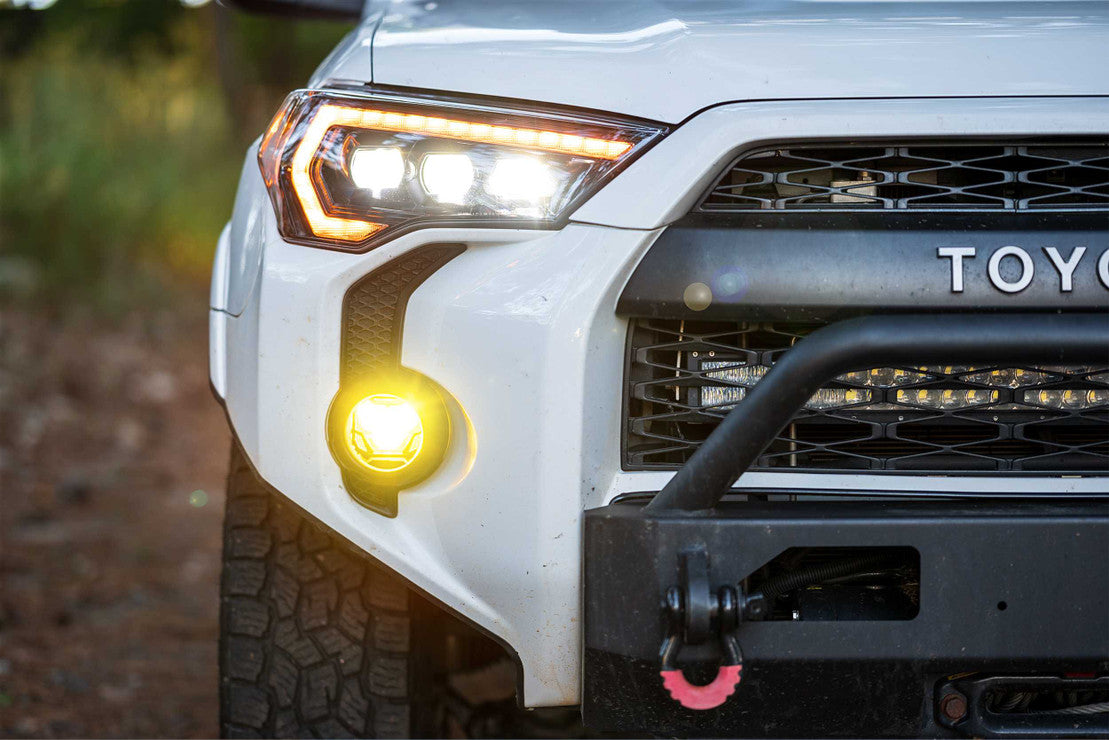

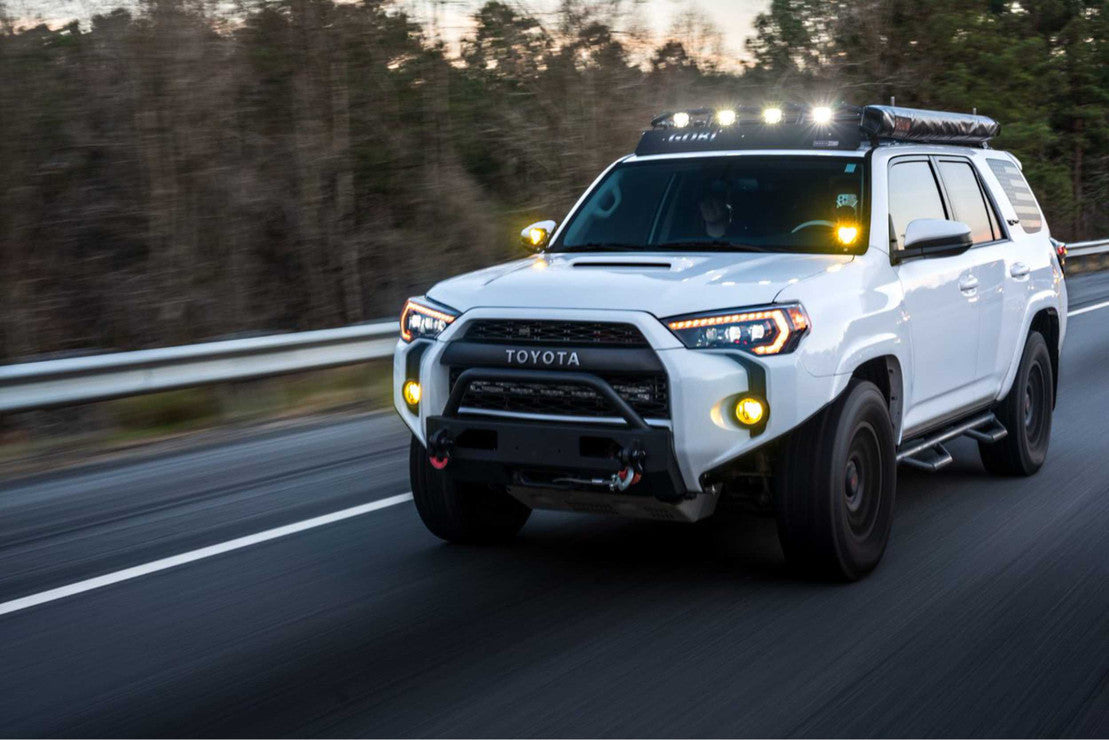

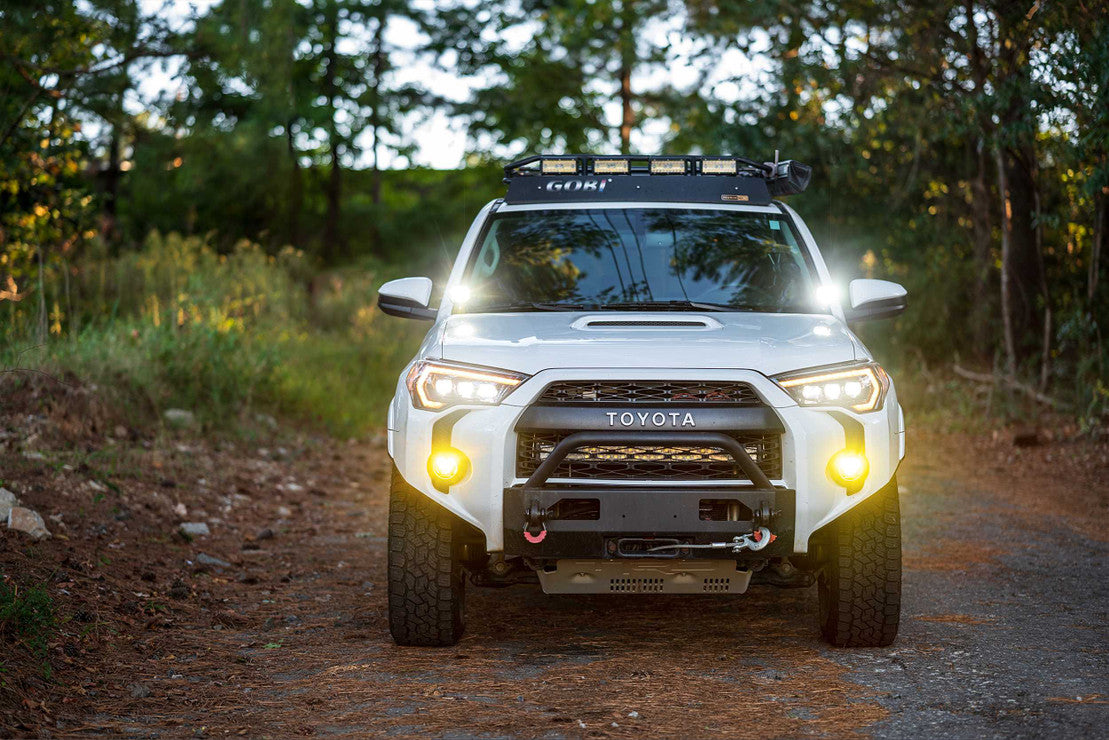

TOYOTA 4RUNNER: 2010-2021
TOYOTA AVALON: 2007-2015
TOYOTA CAMRY: 2007-2014
TOYOTA COROLLA: 2009-2016
TOYOTA HIGHLANDER: 2008-2010
TOYOTA MATRIX: 2009-2013
TOYOTA PRIUS: 2010-2016
TOYOTA PRIUS C: 2012-2016
TOYOTA PRIUS V: 2012-2016
TOYOTA RAV4: 2006-2012
TOYOTA SIENNA: 2010-2016
TOYOTA SOLARA: 2006-2008
TOYOTA TACOMA: 2012-2021
TOYOTA TUNDRA: 2014-2021
TOYOTA VENZA: 2009-2014
TOYOTA YARIS: 2007-2016
SUBARU LEGACY: 2015-2017
REPLACES TOYOTA PART #: 81220-06071, 81210-08020
NOTE: There are two standards for Toyota fog lights with slightly different spacing between the mounting points. These will work with both, but may be a tight fit if your Toyota uses the "wider" spacing.

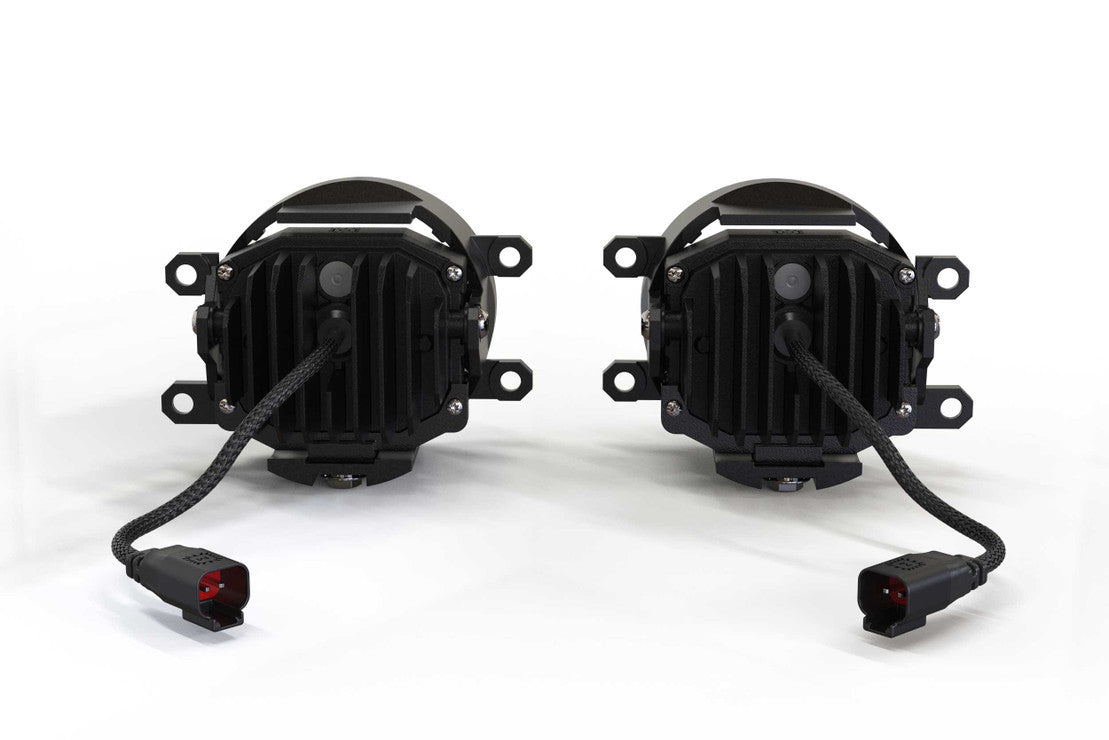

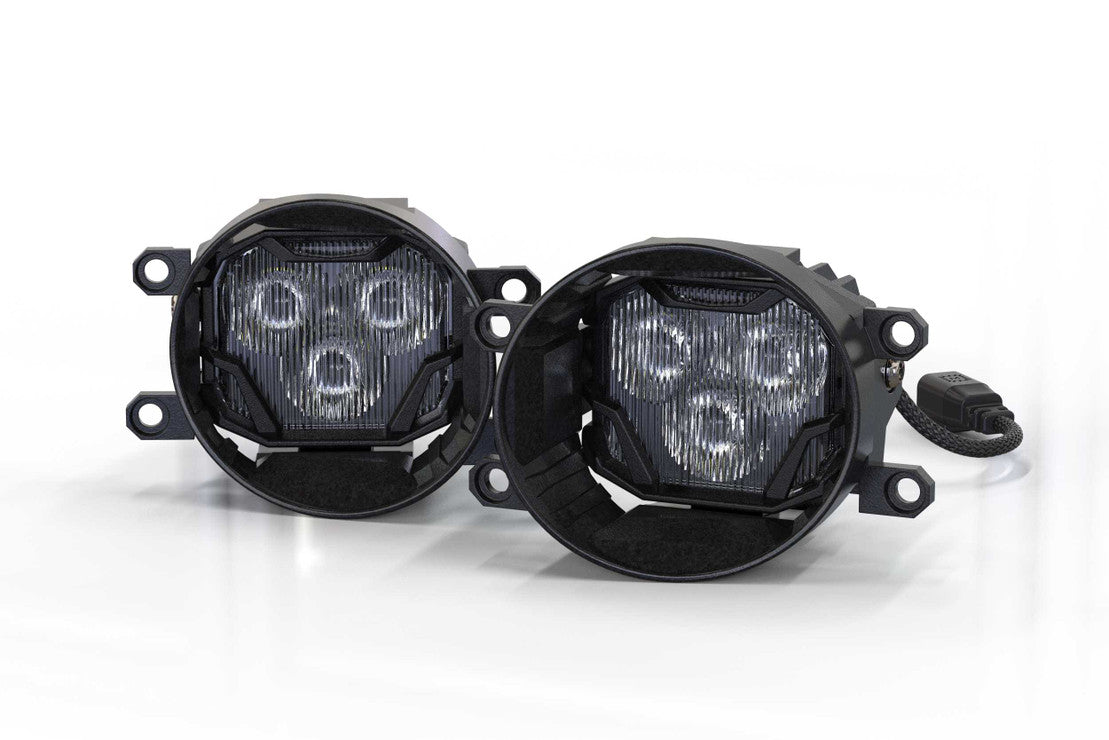

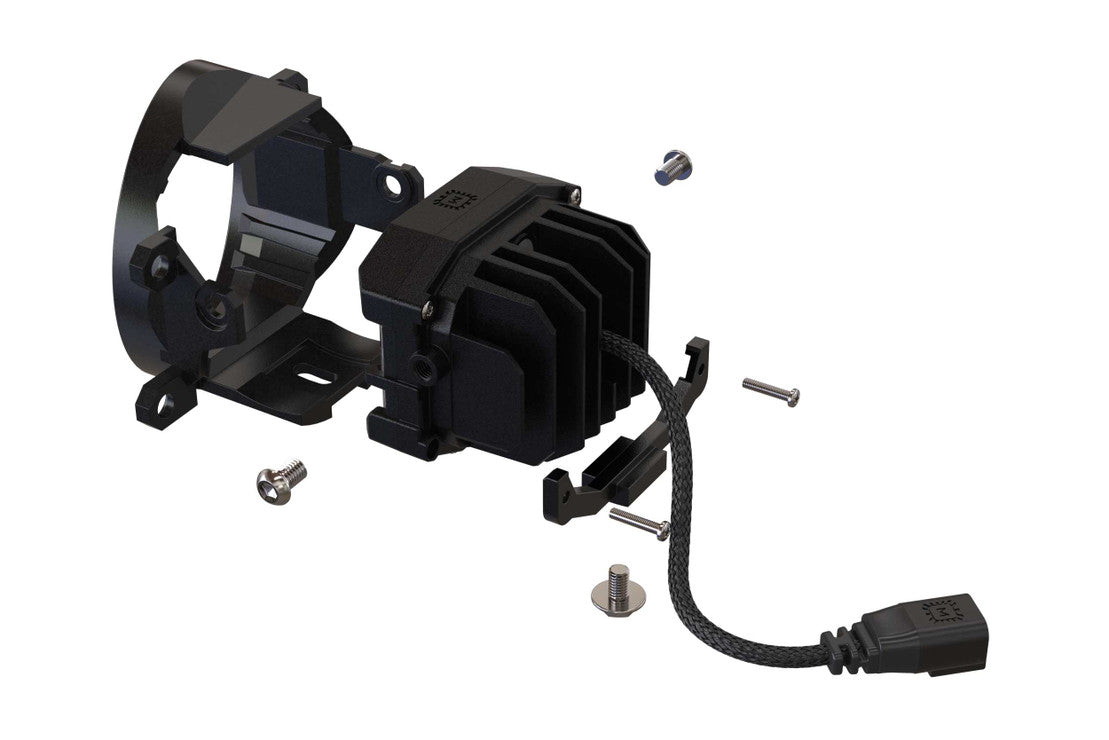

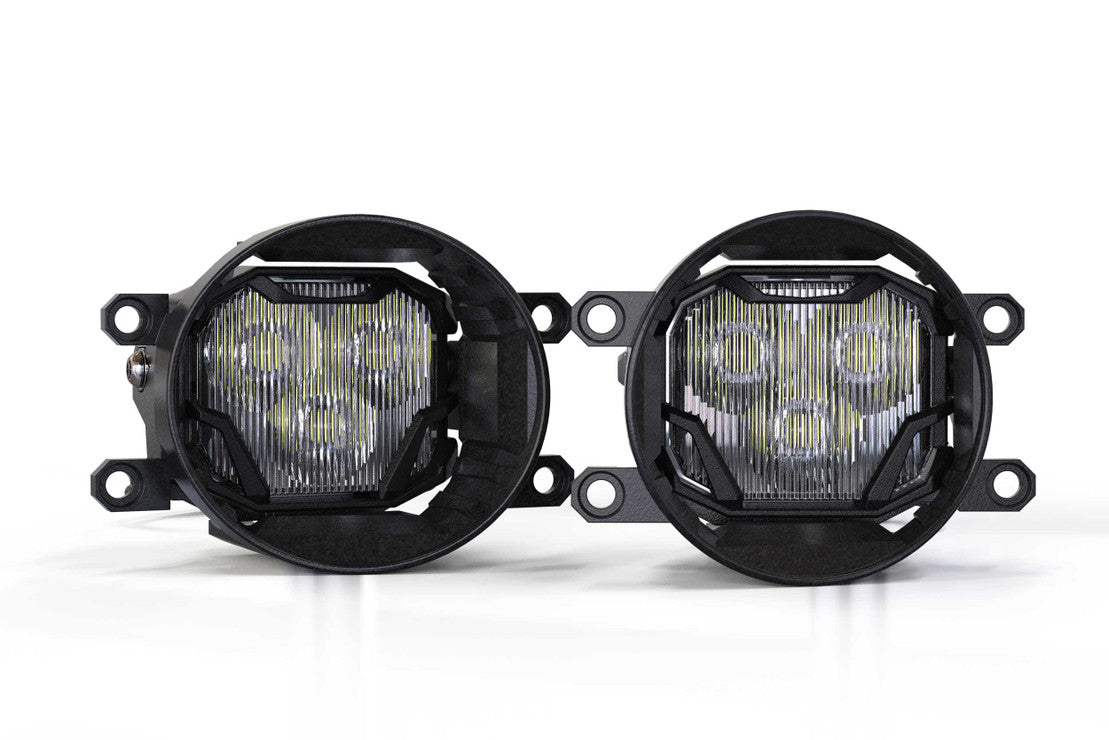

FOG LIGHT BRACKETS: 2x (One Pair) Morimoto 4Banger (BAF014 / Type T Style)
LED PODS: 2x (One Pair) Morimoto 4Banger (Optional Color / Beam)
HARDWARE: Complete Pack (Stainless Steel)
WIRING: Plug N Play Connection Kit
WARRANTY: Limited Lifetime
