Regular price$60.00
/
Shipping calculated at checkout.

  • Fast & Free shipping
  • In stock, ready to ship
  • Inventory on the way

Features

  • Adds RGBW color-changing ability to your engine bay area.
  • Highly flexible, waterproof LED strips.
  • High-density LEDs for brighter output.

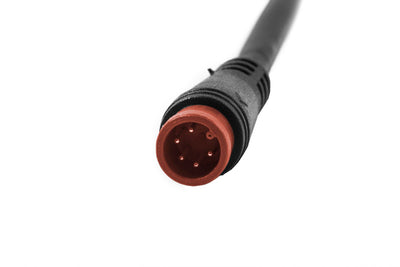

  • Barrel-style M8 connectors, for secure connection.

Overview

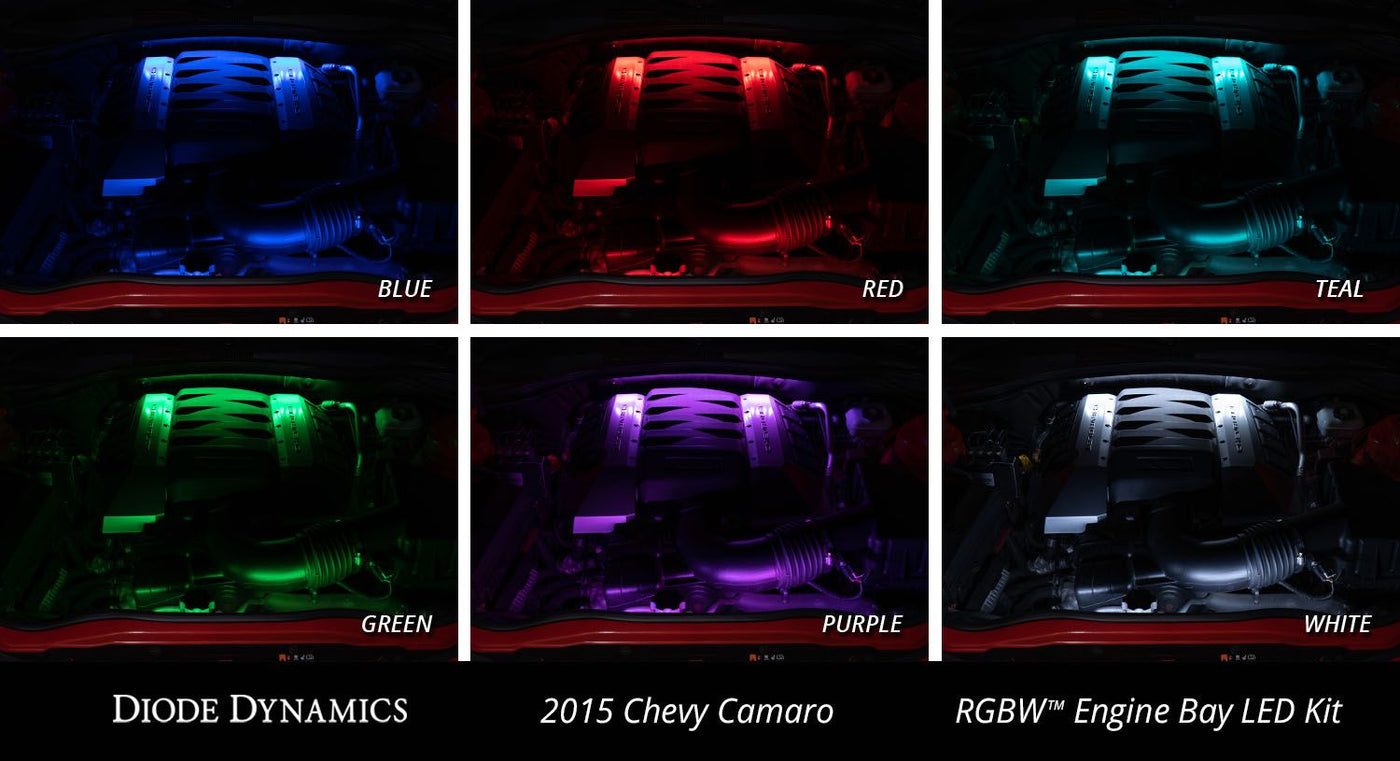

Multicolor. Add RGBW color-changing ability to your vehicle with our Multicolor Engine Bay LED Strip Kit! This product is not just RGB, it is RGBW! That means there is an extra integrated LED chip that is specifically white in color, right next to the standard red, green, and blue LEDs. By using an RGBW controller, you can activate and control the white chip independently of the colors. This provides a much more uniform, pure, and bright white color than the traditional method of combining all RGB signals. With our multicolor LED strips installed, the possibilities are endless!

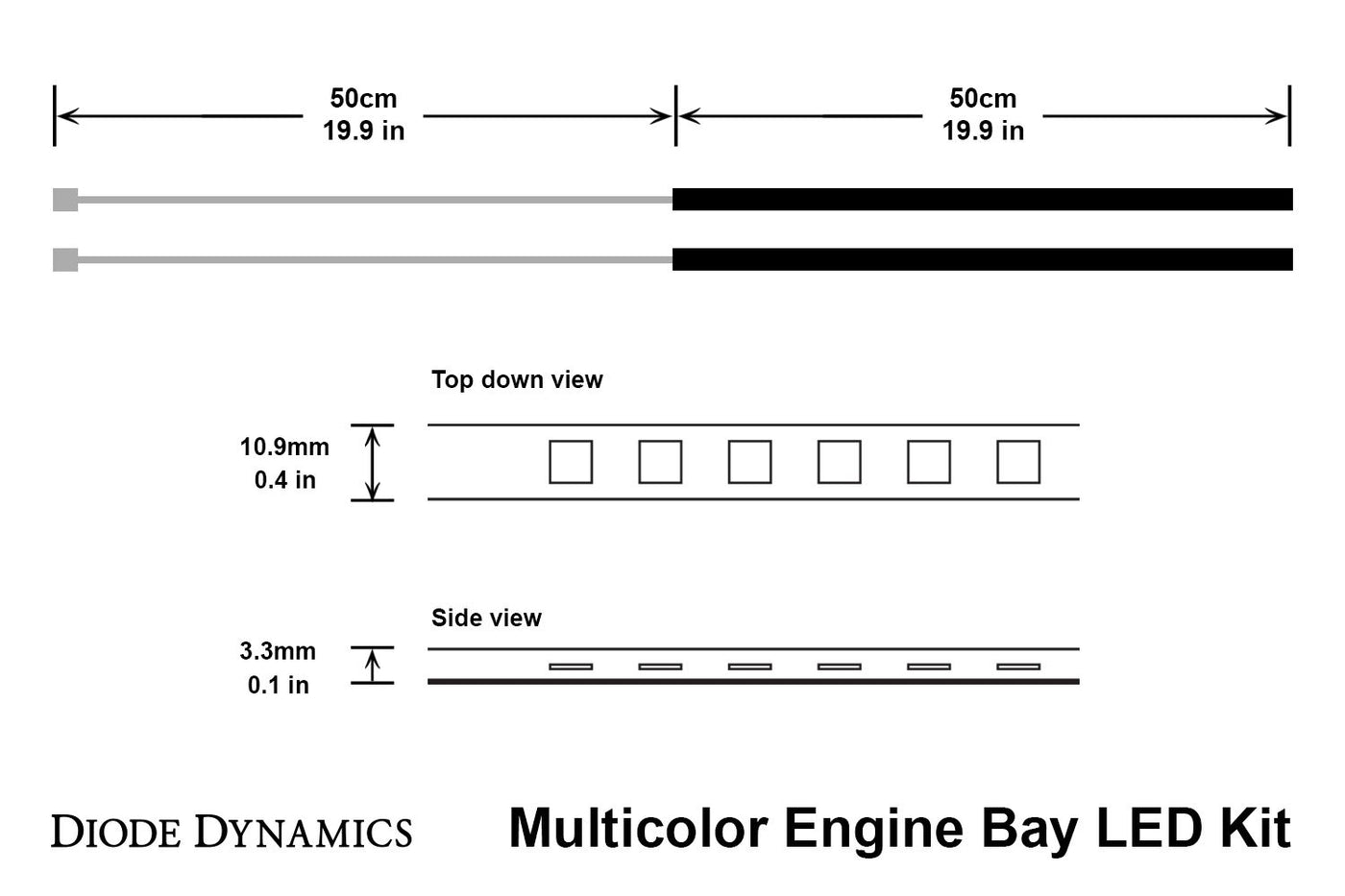

Cut to size. These LED strips are flexible, IP67 weatherproof SMD-type LED strips, with 3 SMDs per 5 cm. They are cuttable every 3 chips, to size to your need, and come with 3M adhesive backing. Due to the weatherproofing, cut portions cannot be reattached without manual soldering, which removes the weatherproofing properties. Weatherproofing can be reapplied through waterproofing products.

Installation. This kit includes everything you need to install LED Strips in the engine bay of your vehicle. You can install the kit using either the included door pin switch or toggle switch. This kit is very universal in nature, and can be tapped into any 12V power source that you would like when installing. You will want to tap into any wire that is acting as a ground, or you can go to a chassis ground!


Specifications

Measured Lumens: 190 Lumens
Power (watts): 3.5
Operating Voltage: 9-16V
Current (amps @ 13.2V): 0.285
Operating Temperature: -40C to 85C (-40F to 185F)
Connector(s): M8 Input
Intrusion Ratings: IP67 Weatherproof


Fitment

What's Included

In the Box:

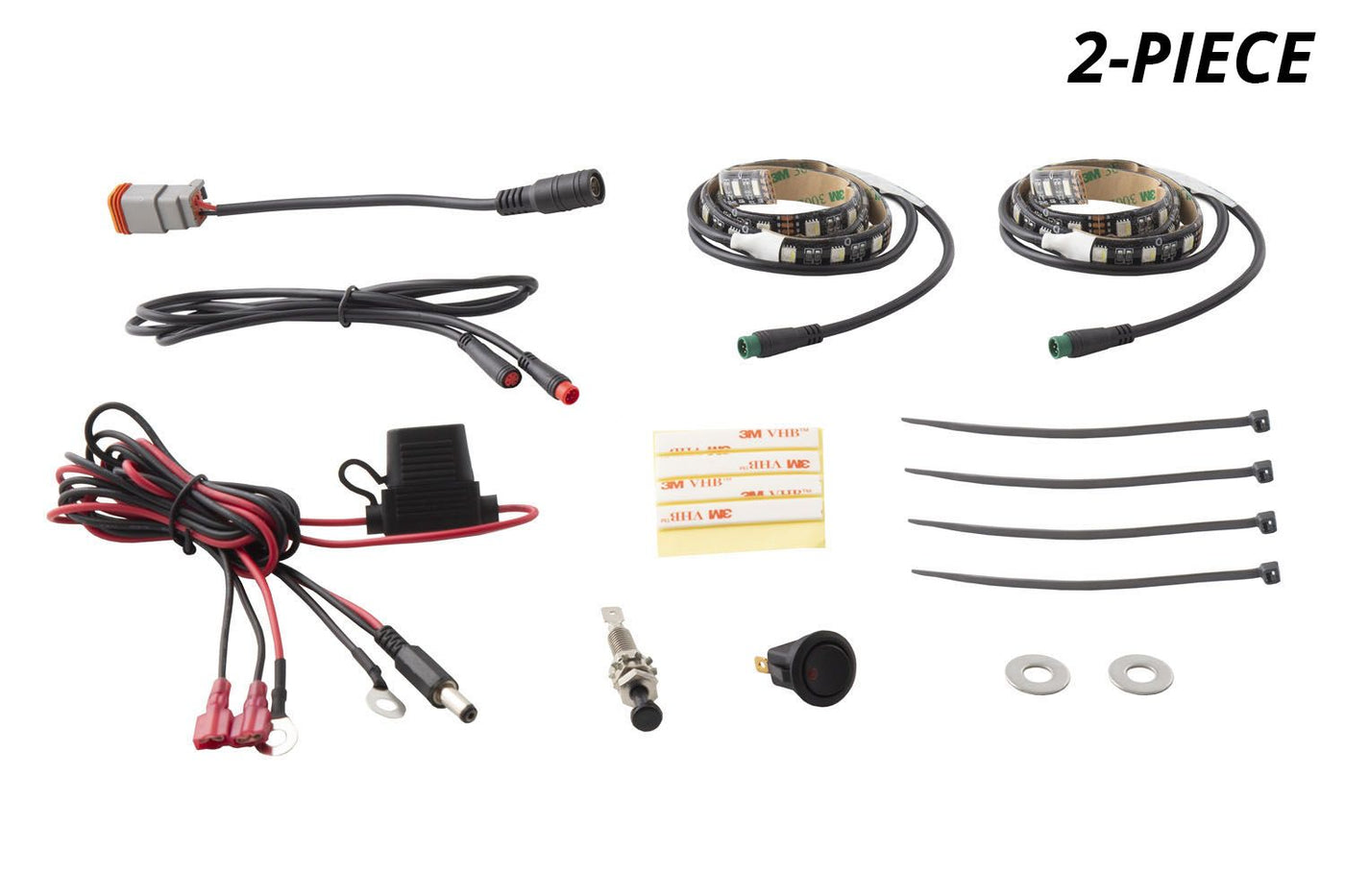

2 Piece Kit

  • Two (2) 50cm RGBW SMD30 Strips
  • One (1) wiring harness
  • One (1) RGBW M8 extension wire 1m
  • One (1) DC-to-DT Adapter
  • One (1) door pin switch
  • One (1) red LED toggle switch
  • Four (4) zip-ties
  • One (1) 3M outdoor adhesive pad
  • Two (2) washers

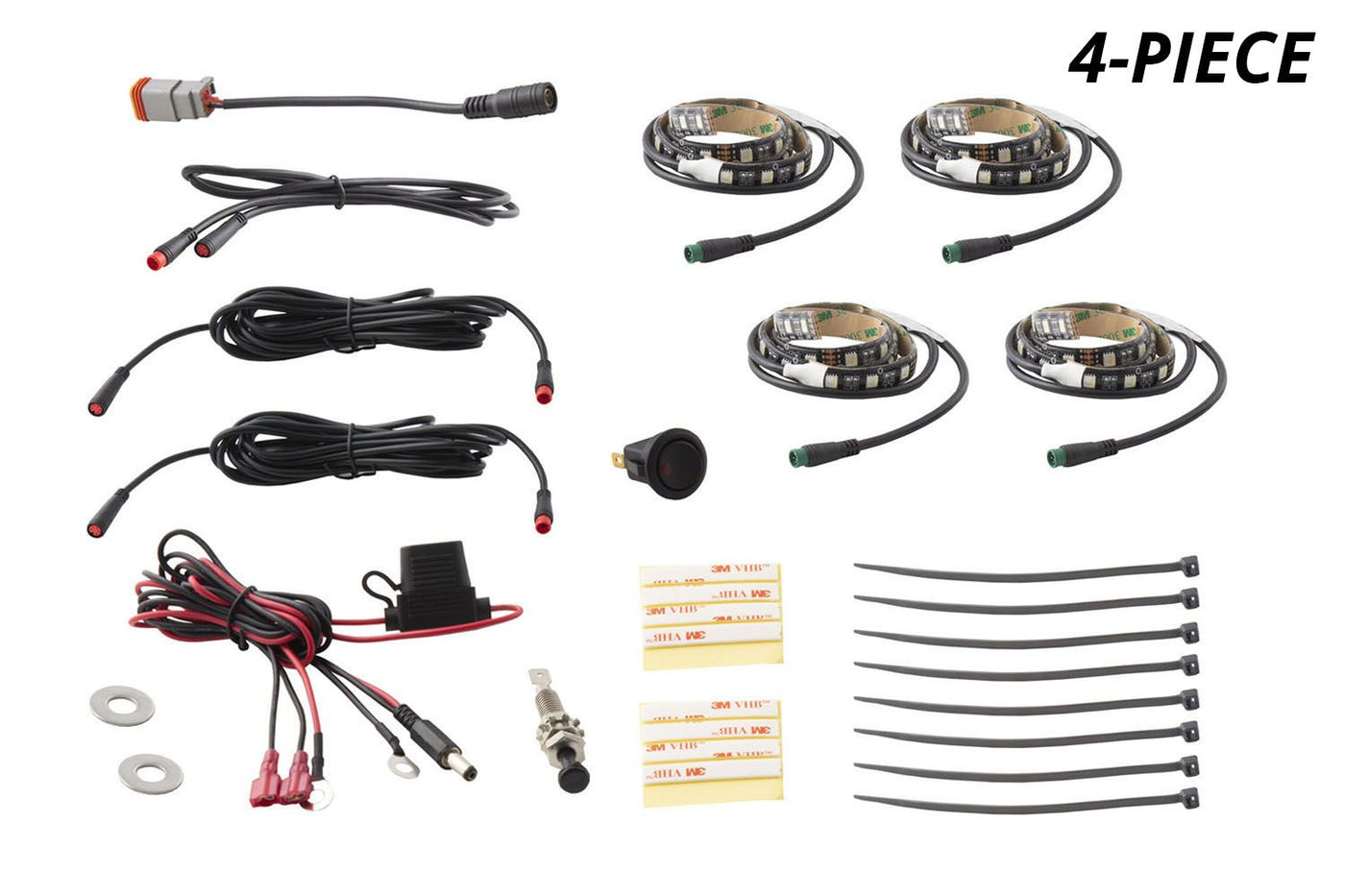

4 Piece Kit

  • Four (4) 50cm RGBW SMD30 Strips
  • One (1) wiring harness
  • One (1) RGBW M8 extension wire 1m
  • Two (2) RGBW M8 extension wires 3m
  • One (1) DC-to-DT Adapter
  • One (1) door pin switch
  • One (1) red LED toggle switch
  • Eight (8) zip-ties
  • Two (2) 3M outdoor adhesive pads
  • Two (2) washers
