Regular price$100.00
/
Shipping calculated at checkout.

  • Fast & Free shipping
  • Low stock - 5 items left
  • Inventory on the way

2019-2023 Ram 1500 Stage Series Backlit Ditch Light

Features:

  • Bolt-on fitment on 2019+ Ram
  • Allows you to mount two Stage Series LED pods above the hood
  • Utilizes existing mounting points for easy installation
  • Thick-gauge stainless steel construction
  • Low-profile design

Overview

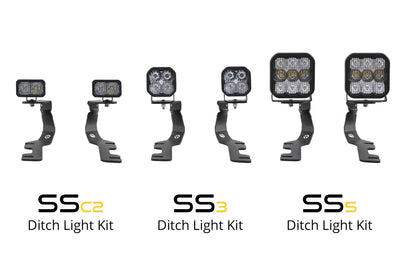

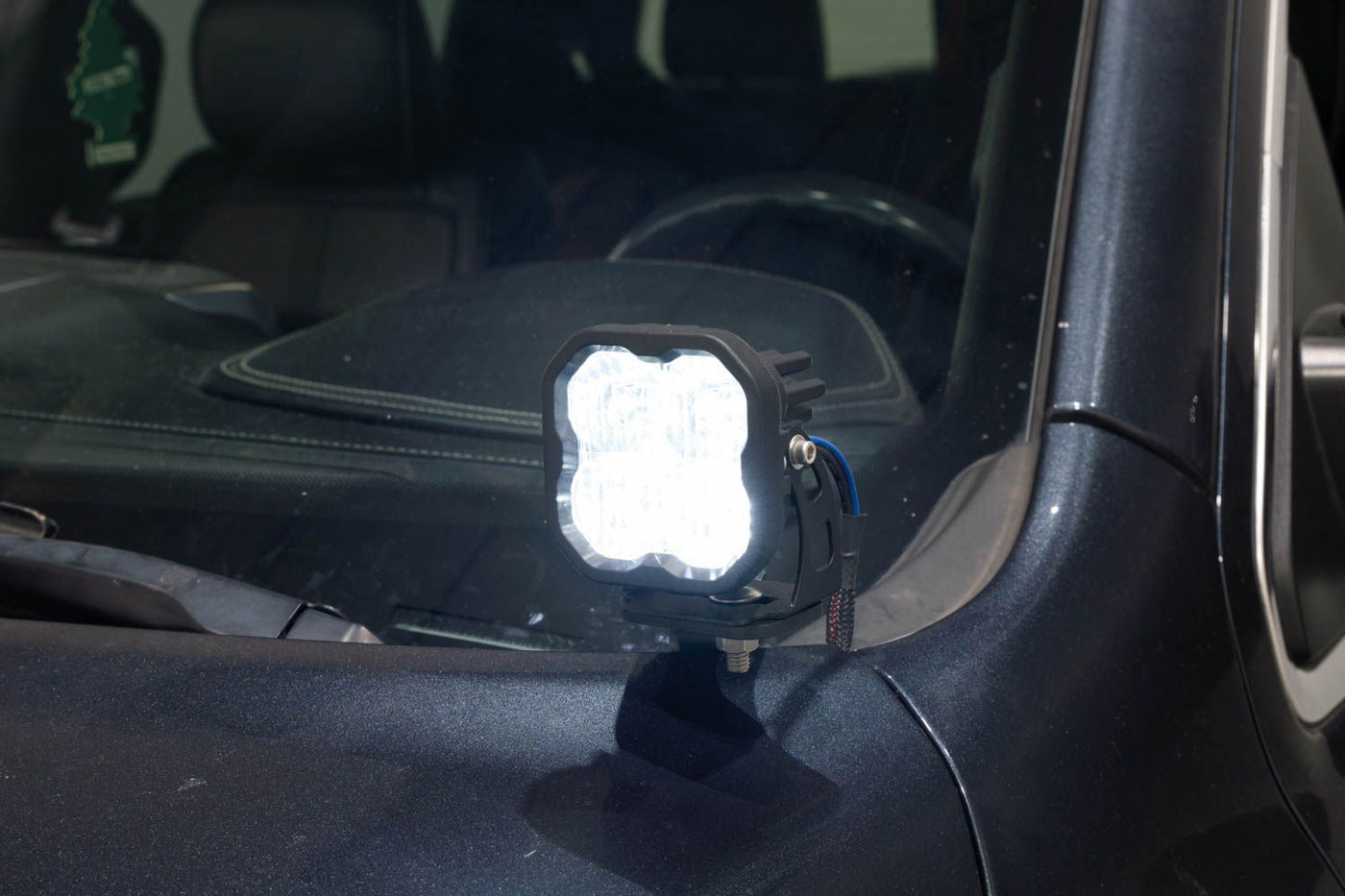

Perfect fitment: The Stage Series Backlit Ditch Light Kit for the 2019-2023 Ram 1500 allows you to easily mount two SS5, SS3 or SSC2 Backlit Pods above the hood near the A-Pillars. These application-specific brackets were CAD-designed to install using factory mounting points. No cutting or drilling is required! This kit features a low-profile design while minimizing glare, and will not interfere with raising or lowering the hood.

Built to last: The brackets in this kit are constructed out of thick-gauge stainless steel. Unlike other options made out of mild steel, these brackets are full stainless steel and won't corrode over time. With their thick-gauge construction, you also won't experience any vibration or bouncing while driving.

Focused: Traditional optics like reflectors or simple lenses lose light internally and glare, so not all of the light shines on the target. Instead, the custom-engineered TIR optic in our LED Pods collects all of the light from the LED, and directs it only where you need it, drastically reducing glare and improving total efficiency.

From there, while other options on the market lose as much as 10% of the light output shining through an outer lens, the custom-molded TIR optic in the SS3 and SSC2 serves as both the optic and main lens for greater efficiency and light output (patent pending). Thanks to this innovative feature, when coupled with high-intensity LED chips, the total intensity of the Stage Series Pod is much greater than other LED pods using basic optics or reflectors with a standard outer lens.

Functional output: All Stage Series beam pattern options were designed with optical simulation modeling, to shape the output in a highly-functional beam pattern. No matter what your auxiliary lighting needs are, there is a Stage Series optic for you!

Combo combines both the Driving and Flood optics. The SS5 shines light downrange in a full 70x30 degree pattern, the SS3 shines light downrange in a 65x25 degree pattern, and the SSC2 shines light downrange in a 40x20 degree pattern.

For states that require them, we also offer snap-on covers for your Stage Series LED Pods. These covers are available in a variety of colors and keep your Stage Series Pod clean and protected from dirt, dust, or whatever else the road throws your way!

White or Yellow: All Stage Series LED pods are available in a cool white or selective yellow color. The white is a 6000K color temperature, which is a true cool white output, and matches most factory LED lighting. The selective yellow is a 3000K color temperature, great for high contrast in poor weather or a distinctive look on the road. We also offer replacement lenses that allow you to change the color or optic of your Stage Series LED Pods.

Sport or Pro: Stage Series LED pods are available at two different power levels. Both options use high-intensity LED emitters, and TIR optics for unmatched focus and overall output. However, the Pro option is double the amount of total power. Click the Specifications tab to see more information.

Backlight Functionality: Both the SS3 and SSC2 pods included in our Stage Series Ditch Light Kits feature a brilliant Amber backlight. The SS5 Pods included with this kit feature a selectable backlight with eight different color options. Selecting your backlight color on the SS5 is easy - simply alternate the power on and off. There’s no complicated programming with a controller! This integrated backlight gives you an additional accent light, along with the main beam. The backlight fully illuminates the TIR optic, providing a more unique and modern look than the small indicator LEDs found in other products. To power the backlight, use the included harness to tap your desired vehicle function.

Proven Reliability: Stage Series LED lighting has been extensively tested for long-term operation from -40 to 185 degrees F, along with vibration, moisture intrusion, and corrosion testing. All of these tests are completed to SAE standards, just like factory components. They've also been put to the test on-road by racers and enthusiasts alike.

Experience: After over a decade in business, Diode Dynamics is one of the most trusted names in automotive LED lighting. We directly assemble and engineer our own products in the United States, allowing for higher quality and performance, with the newest and brightest LED technology. No matter what you're driving, we pride ourselves in offering only the best possible LED solutions.

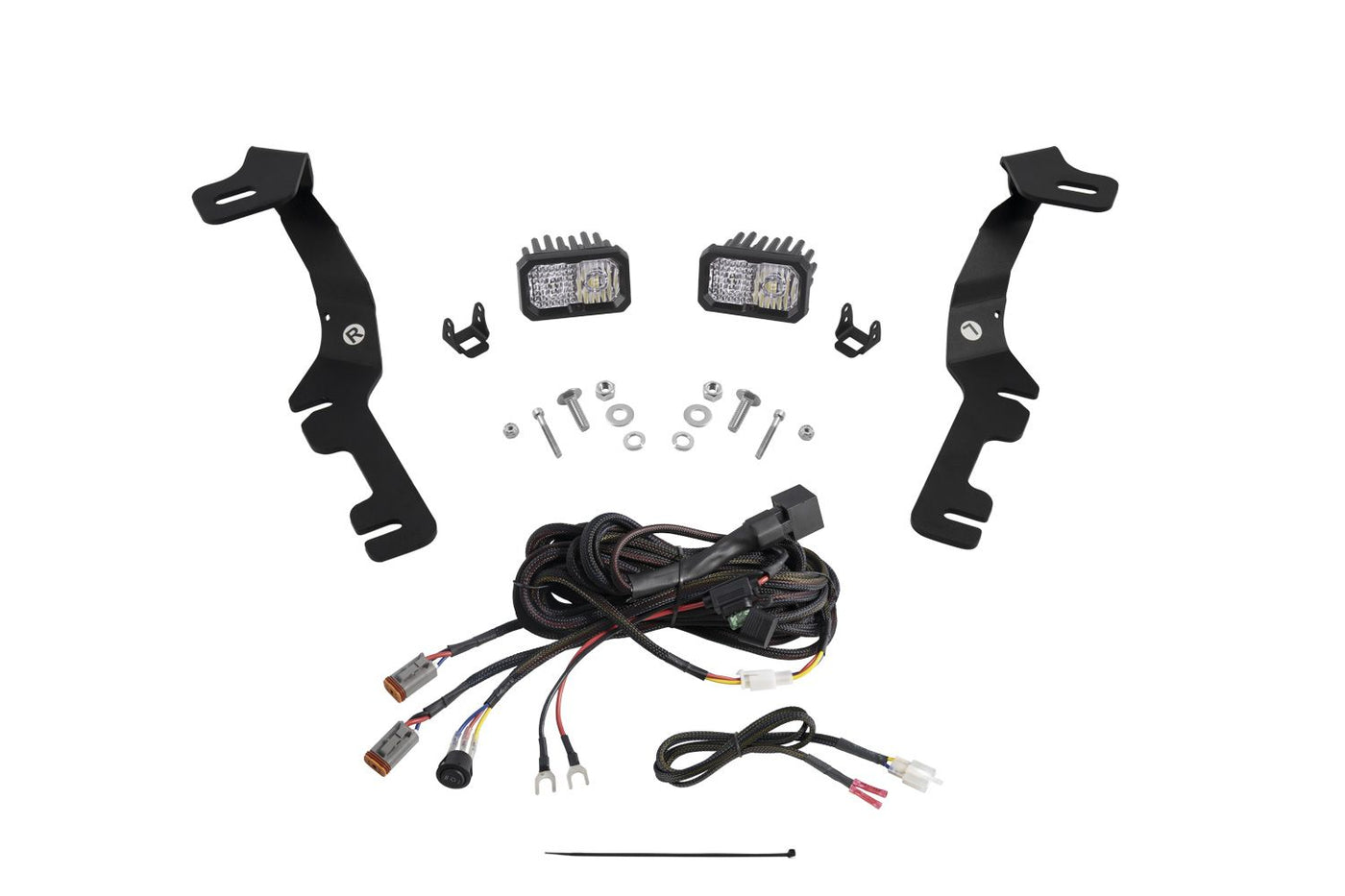

What's Included

In the Box:

  • Two (2) SS5, SS3 or SSC2 Standard LED Pods
  • Two (2) Ditch Light Brackets for 2019+ Ram 1500
  • One (1) Heavy Duty Dual Output 4-pin Wiring Harness
  • Mounting hardware
  • Mounting guide

Fitment

NOTE: This kit is not compatible with the TRX and Rebel trim levels. Do not use automatic car washes with this kit installed.

Make: Ram
Model: 1500
Years: 2019, 2020, 2021, 2022, 2023

Specifications

NOTE: Specifications listed here are for each individual pod.

SS5 LED Pods
Lens Color/Optics

Peak Beam Intensity
(candela)

Illuminance
(lux @ 10m)
Measured Output
(lumens)
Raw Output
(lumens)
Output Color
Combo White Sport 81,600 cd 820 lux 3,800 lm 4,800 lm 6000K White
Combo White Pro 75,700 cd 750 lux 9,600 lm 9,700 lm 6000K White
Combo Yellow Sport 71,200 cd 820 lux 3,700 lm 4,800 lm 3000K Yellow
Combo Yellow Pro 58,500 cd 750 lux 7,900 lm 8,900 lm 3000K Yellow

SS3 LED Pods
Lens Color/Optics

Peak Beam Intensity
(candela)

Illuminance
(lux @ 10m)
Measured Output
(lumens)
Raw Output
(lumens)
Output Color
Combo White Sport 31,500 cd 315 lux 1,520 lm 2,262 lm 6000K White
Combo White Pro 35,100 cd 351 lux 3,000 lm 5,796 lm 6000K White
Combo Yellow Sport 28,100 cd 281 lux 1,300 lm 1,930 lm 3000K Yellow
Combo Yellow Pro 33,406 cd 334 lux 2,700 lm 5,220 lm 3000K Yellow

SSC2 LED Pods
Lens Color/Optics

Peak Beam Intensity
(candela)

Illuminance
(lux @ 10m)
Measured Output
(lumens)
Raw Output
(lumens)
Output Color
Combo White Sport 16,264 cd 163 lux 871 lm 1,130 lm 6000K White
Combo White Pro 27,179 cd 272 lux 1,988 lm 2,898 lm 6000K White
Combo Yellow Sport 13,534 cd 135 lux 777 lm 960 lm 3000K Yellow
Combo Yellow Pro 23,388 cd 234 lux 1,858 lm 2,610 lm 3000K Yellow


SS5 Current (amps @ 12.8V): Sport: 2.75, Pro: 6
SS3 Current (amps @ 13.2V): Sport: 1.1, Pro: 2.7
SSC2 Current (amps @ 12.8V): Sport: 0.6, Pro: 2
SS3 Operating Voltage: Backlit: 9-30V, Non-Backlit: 9-16V
SSC2 Operating Voltage: 9-16V
Color Temp (CCT): 3000K, 6000K
Beam Angle: Combo (Driving and Flood)
Power (watts): SS3 Sport: 14.5, SS3 Pro: 36, SSC2 Sport: 7.7, SSC2 Pro: 25.6, SS5 Sport: 40, SS5 Pro: 90
Polarity: Polarity Specific
Operating Temperature: -40C to 85C (-40F to 185F)
LED Emitter: Luxeon Z ES, Cree XP-L HI
Connector(s): Deutsch DT Input
Driver Features: Constant Current
Materials: Polycarbonate Lens, Powdercoated Steel, Aluminum Casting, Rubber Gasket
Cooling: Passive, Pin-Fin heatsink
Compliance Ratings: SAE J575 Durability Test
Intrusion Ratings: IP69K Waterproof, High Pressure
Unit Weight (lb): SSC2: 2.40, SS3: 3.60, SS5: 4.20
Product Weight (lb): SSC2: 6.00, SS3: 6.60, SS5: 9.80


Installation

Installation Time: 1-2 hours
Tools Needed:
Basic Toolset
Modification:
None
